《PyTorch深度学习实践》11. 卷积神经网络（高级篇）

发表于 | | 阅读次数：

卷积神经网络（高级篇）

1*1的卷积核

下图是两种网络的构造方式，图二相比于图一多了一个1*1的卷积核层，在长宽不变的情况下减小了通道数，把运算次数减少了一个数量级。

image-20200924112727978

GoogleNet（简化版）

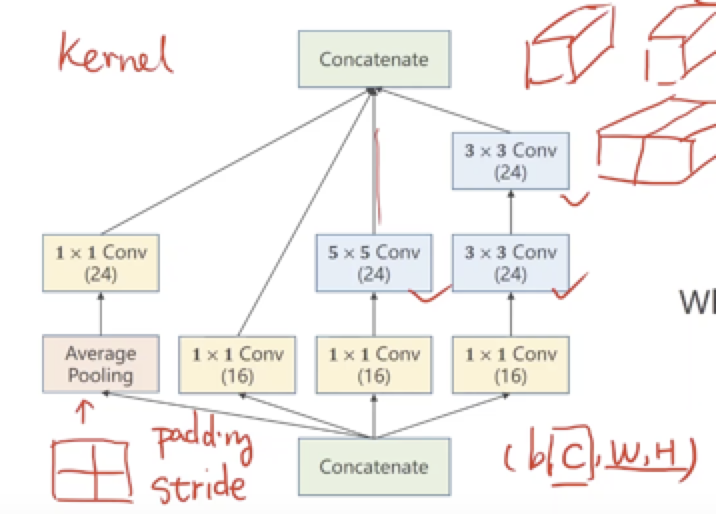

下图为GoogleNet中的Inception模块：

image-20200924210616539

代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
class InceptionA(nn.Module):
    def __init__(self, in_channels):
        self.branch1x1 = nn.Conv2d(in_channels, 16, kernel_size=1)

        self.branch5x5_1 = nn.Conv2d(in_channels, 16, kernel_size=1)
        self.branch5x5_2 = nn.Conv2d(16, 24, kernel_size=5, padding=2)

        self.branch3x3_1 = nn.Conv2d(in_channels, 16, kernel_size=1)
        self.branch3x3_2 = nn.Conv2d(16, 24, kernel_size=3, padding=1)
        self.branch3x3_3 = nn.Conv2d(24, 24, kernel_size=3, padding=1)

        self.branch_pool = nn.Conv2d(in_channels, 24, kernel_size=1)

    def forward(self, x):
        branch1x1 = self.branch1x1(x)

        branch5x5 = self.branch5x5_1(x)
        branch5x5 = self.branch5x5_2(branch5x5)

        branch3x3 = self.branch3x3_1(x)
        branch3x3 = self.branch3x3_2(branch3x3)
        branch3x3 = self.branch3x3_3(branch3x3)

        branch_pool = F.avg_pool2d(x, kernel_size=3, stride=1, padding=1)
        branch_pool = self.branch_pool(branch_pool)

        outputs = [branch1x1, branch5x5, branch3x3, branch_pool] # 把各个输出根据channel拼起来，共88个channel
        return torch.cat(outputs, dim=1)

GoogleNet的一个简化实现：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
class Net(nn.Module):
    def __init__(self):
        super(Net, self).__init__()
        self.conv1 = nn.Conv2d(1, 10, kernel_size=5)
        self.conv2 = nn.Conv2d(88, 20, kernel_size=5)   # 88=24+24+24+16

        self.incep1 = InceptionA(in_channels=10)
        self.incep2 = InceptionA(in_channels=20)

        self.mp = nn.MaxPool2d(2)
        self.fc = nn.Linear(1408, 10)

    def forward(self, x):
        in_size = x.size(0)
        x = F.relu(self.mp(self.conv1(x)))
        x = self.incep1(x)
        x = F.relu(self.mp(self.conv2(x)))
        x = self.incep2(x)
        x = x.view(in_size, -1)
        x = self.fc(x)
        return x

梯度消失与Residual Net

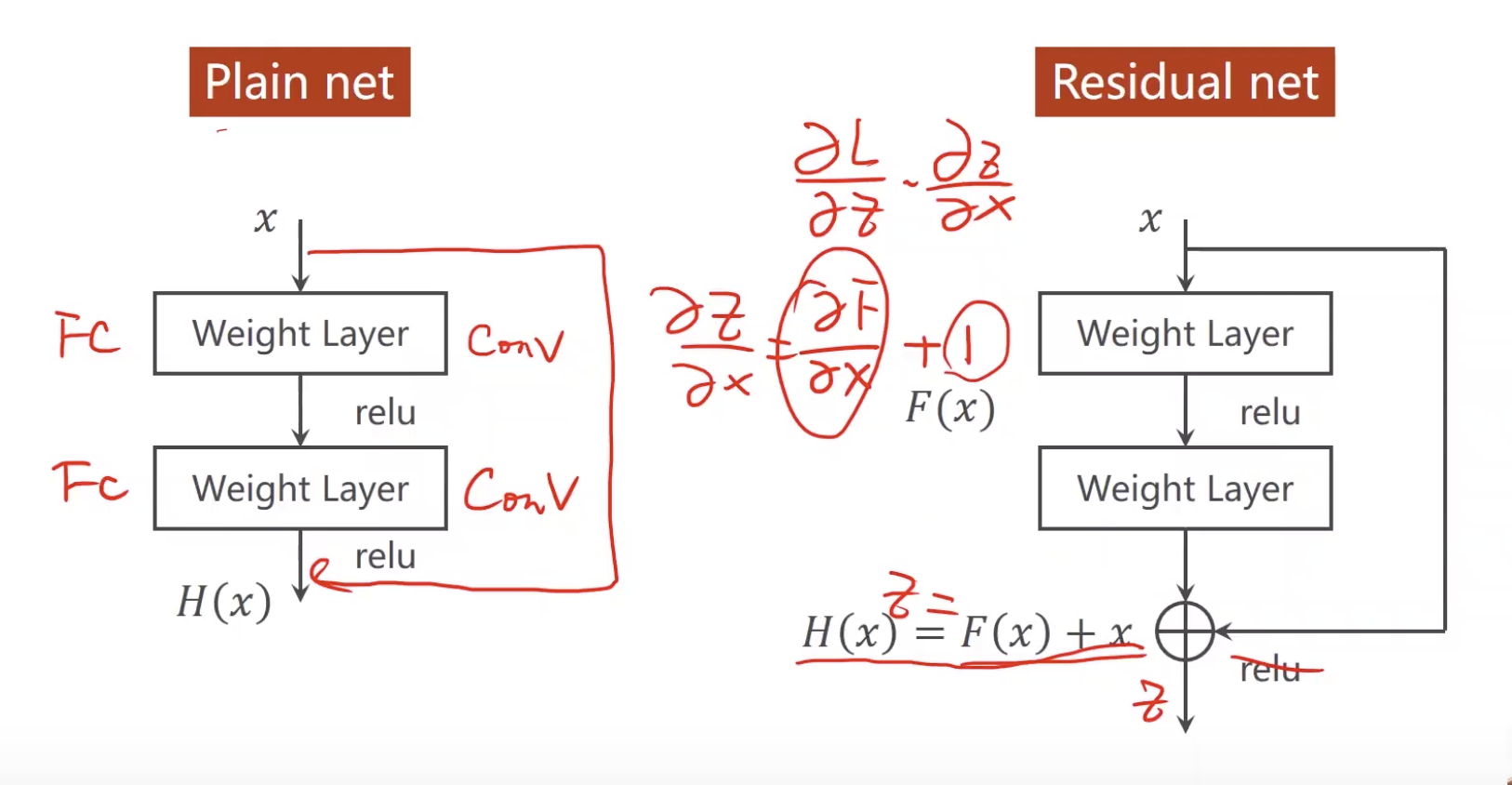

随着网络层数的加深，可能会出现梯度消失的问题，更新的时候，接近输入的层参数更新会非常缓慢。对于这种情况的一种解决方案是采用residual net，即在做relu激活前，先把现有的函数输出与原始输入相加（要求长宽和通道数一致），这样得到$H(x)=F(x)+x$的形式，好处是当求导时可以得到这样的形式：$\frac{\partial{H(x)}}{\partial{x}}=\frac{\partial{F(x)}}{\partial{x}}+1$，最小值为一个接近1的数而非很小的小数，相乘时就不会产生梯度消失的问题了。

image-20200925153126823

1
2
3
4
5
6
7
8
9
10
11
12
13
class ResidualBlock(nn.Module):
    def __init__(self, channels):
        super(ResidualBlock, self).__init__()
        self.channels = channels
        self.conv1 = nn.Conv2d(channels, channels,
                               kernel_size=3, padding=1)
        self.conv2 = nn.Conv2d(channels, channels,
                               kernel_size=3, padding=1)

    def forward(self, x):
        y = F.relu(self.conv1(x))
        y = self.conv2(y)
        return F.relu(x + y) # 注意是先求和后激活

总体网络构造：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
class Net(nn.Module):
    def __init__(self):
        super(Net, self).__init__()
        self.conv1 = nn.Conv2d(1, 16, kernel_size=5)
        self.conv2 = nn.Conv2d(16, 32, kernel_size=5)
        self.mp = nn.MaxPool2d(2)

        self.rblock1 = ResidualBlock(16)
        self.rblock2 = ResidualBlock(32)

        self.fc = nn.Linear(512, 10)

    def forward(self, x):
        in_size = x.size(0)
        x = self.mp(F.relu(self.conv1(x)))
        x = self.rblock1(x)
        x = self.mp(F.relu(self.conv2(x)))
        x = self.rblock2(x)
        x = x.view(in_size, -1)
        x = self.fc(x)
        return x

在Colab上运行

课程来源：《PyTorch深度学习实践》完结合集
